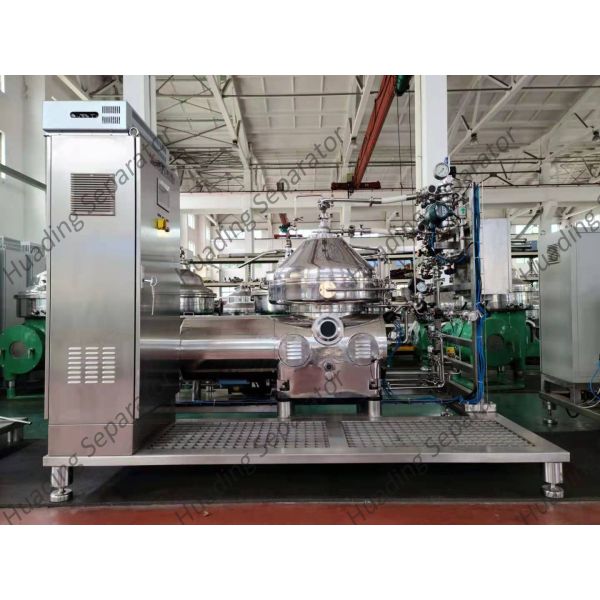

Huading Manufacturer Outlet SIP Veterinary Vaccine Disc Stack Centrifuge

Name: Huading Manufacturer Outlet SIP Veterinary Vaccine Disc Stack Centrifuge
Brand: HUADING
Price: 24 USD

Wholesale Huading Manufacturer Outlet SIP Veterinary Vaccine Disc Stack Centrifuge from china suppliers

Place of Origin : Jiangsu, China

product type : Separator

video outgoing-inspection : Provided

machinery test report : Provided

core components : PLC, Motor

Brand Name : HUADING

voltage : 110-440V

power(w) : customized

dimension(l*w*h) : Depends on models

warranty : 1 Year

key selling points : Competitive Price

Capacity : ~6000L/h

Weight (KG) : 1500

setting speed : 6000RPM

Frequency inverter : /ABB

Material : SS304/316L...

Motor : ABB

After-sales Service Provided1 : Field installation, commissioning and training

After-sales Service Provided2 : Online support & Video technical support

Applicable Industries1 : Food & Beverage Factory & Farms

Applicable Industries2 : Energy & Mining

Applicable Industries3 : Waste Water & Sludge

MOQ : 1 set

Price : $24,000-25,000 / set

Contact Now

Huading Manufacturer Outlet SIP Veterinary Vaccine Disc Stack Centrifuge

The SIP disc stack centrifuge is specifically engineered for sterile processing applications in biotechnology, including vaccine production and transgenic biological product processing. This equipment ensures continuous separation of pathogens and genetically modified organisms from fermented liquids within a completely closed, sterile system.

Sterile Processing Capabilities

Our self-cleaning centrifuges are integrated into sterile and fully enclosed systems, with the entire separator system designed for steam sterilization to maintain strict aseptic conditions required in biological technology applications.

Operating Principle & Bowl Components

Bowl Component Diagram

1. Feeding pipe
2. Centripetal pump
3. Discharge port
4. Sliding piston
5. Small piston
6. Sliding piston chamber
7. Water room

Operation Cycle: After starting and reaching full speed, operating water enters the sealed chamber (6) to raise the piston (4), closing the outlet (3). Material to be separated is fed into the bowl through pipe (1). Centrifugal force causes impurities to gather on the bowl periphery.

At predetermined intervals, operating water flows into the open chamber (5), forcing the sliding piston downward to open outlet (3). Impurities discharge outside the bowl through outlet (3) and are collected externally. Simultaneously, the light phase gathers in the bowl center and discharges via centripetal pump (2), while the heavy phase is directed to the centripetal pump room through disc gland and discharged.

This completes one cycle. Operating water then re-enters the sealing chamber (6), raising piston (4) to close ejection port (3), and the cycle repeats continuously.
